Reference JOB 21 / Year c. 2010 / Client Confidential / Discipline Structural / FEA
Cantilever storage rack

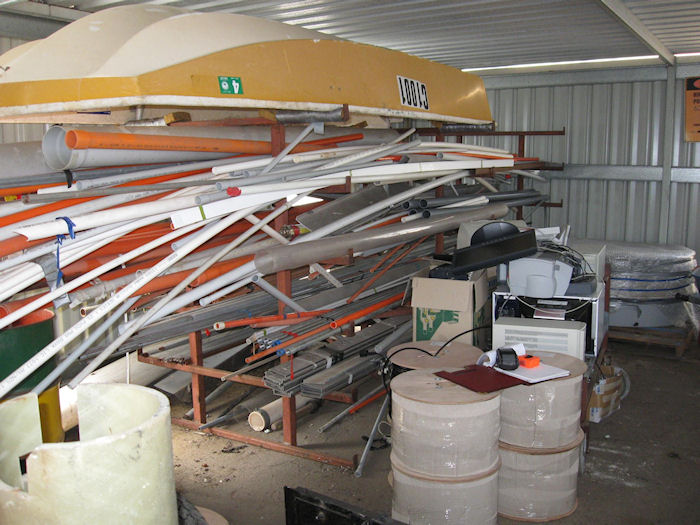

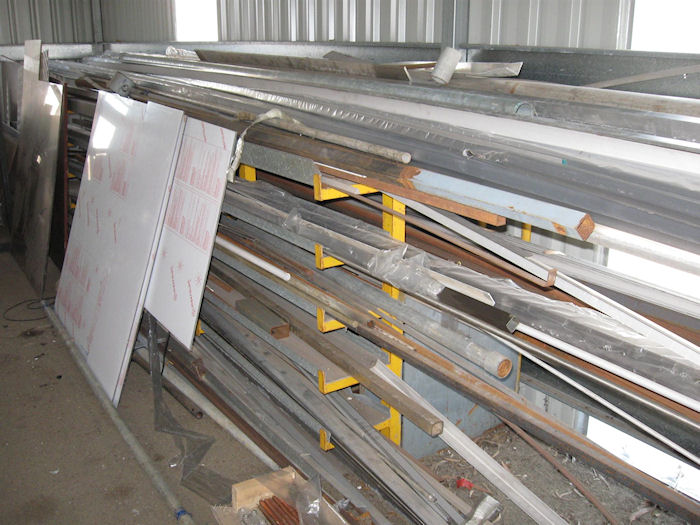

An existing storage arrangement that could not hold what the client needed to store, replaced with a cantilever rack sized by analysis rather than by eye.

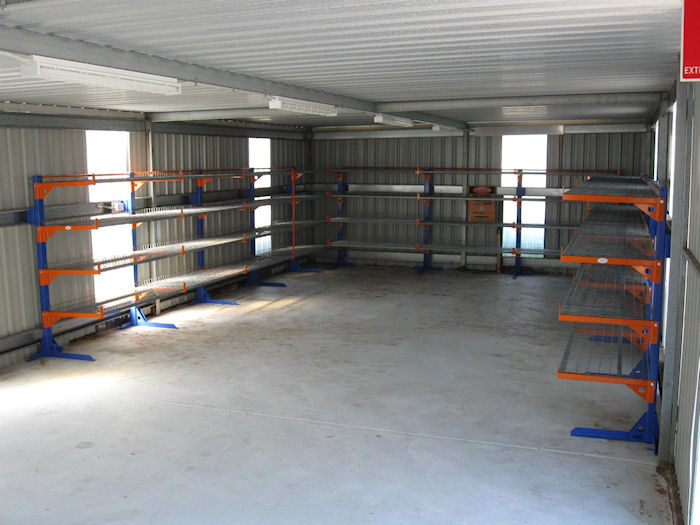

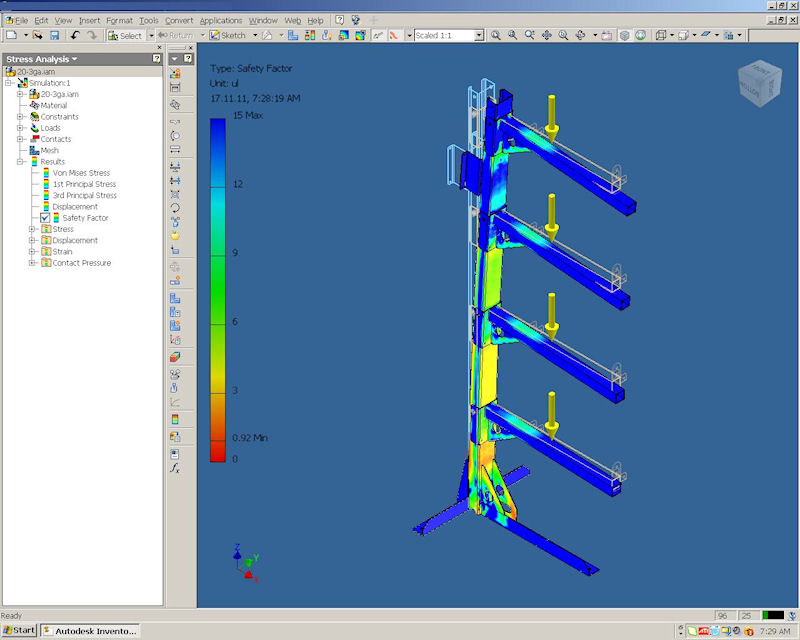

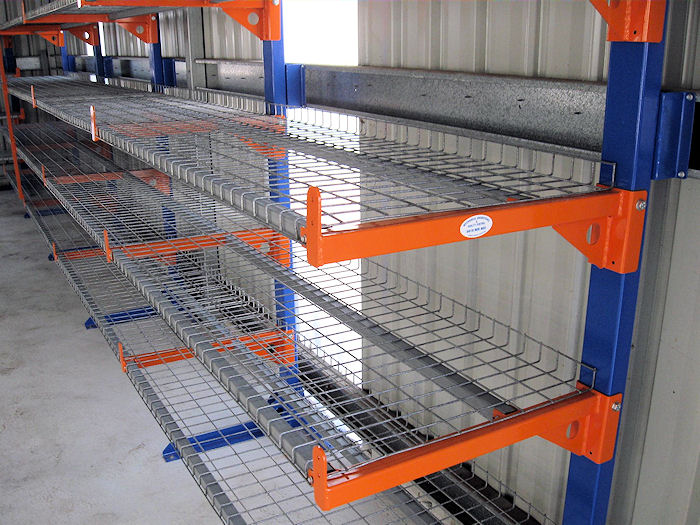

The original arrangement was replaced with a new system designed around the client's actual load and access requirements. A finite element analysis was run on the design before fabrication began.

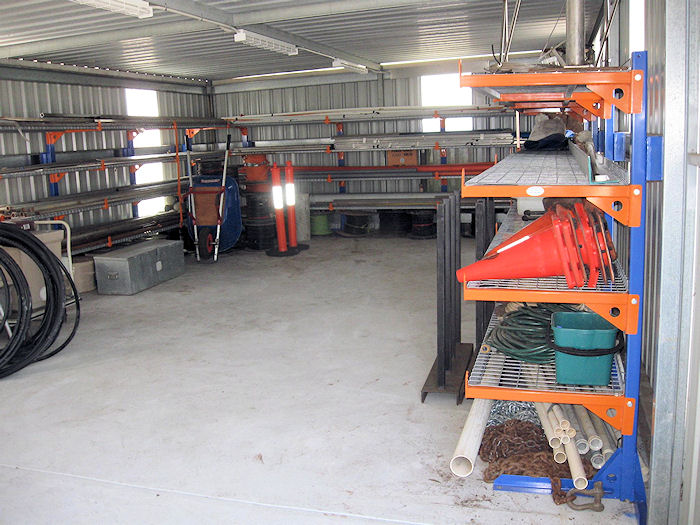

The rack was installed and commissioned on site.
